Eliza - Ceiling Fan - Brushed Nickel Finish - Brushed Nickel Blades
Image may not reflect selected features
/vendors/230/large/EK-BN-BN-01.jpg
additional image
additional image

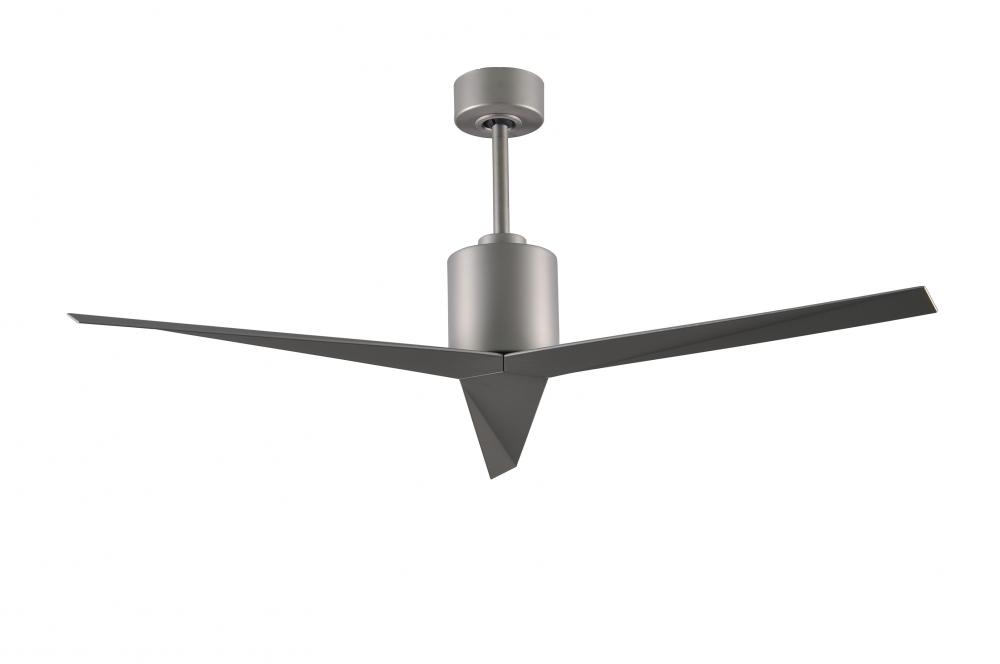

Eliza - Ceiling Fan - Brushed Nickel Finish - Brushed Nickel Blades (EK-BN-BN) by Matthews Fan Company
Designed by Chicago architect Stephen Katz in 2013, the Eliza blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is the Eliza fan’s stationary visual statement which combines modern utility with minimalist geometry.

With superior function and movement the unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization.
Product Specification
Item #
EK-BN-BN
Dimensions
Height: 12.00"
Width: 56.00"
Additional product details
Vendor Item #
EK-BN-BN
Category
Fans
Subcategory
Ceiling Fans
Finish
Nickel
Style
Contemporary , Traditional , Transitional
Option
Outdoor , Title 20
Subfinish
Brushed Nickel
Location Rating
Wet Rated
Category
Ceiling Fan
Finish
Brushed Nickel
Style
Contemporary, Transitional
Option
Outdoor , Title 20
Family
Eliza
Air Flow Efficiency
183
Amperage
0.5
Blade Finish
Brushed Nickel
Blade Pitch
27
Blade Span
56
Canopy
6 W x 6 D x 2 H
Designer
Stephen Katz
Down Rod Included
10
Introduction Date
01/01/2017
Keyword(s)
Bedroom, Dining Room, Entryway, Foyer, Hallway, Kitchen, Living Room, Office, Patio, Basement, Gym
Light Kit Included
No
Material
Cast Aluminum, Polycarbonate, Heavy Stamped Steel
Max Height
84
Motor Type
DC
Order Minimum
1
Ship Carton Height
13
Ship Carton Length
30
Ship Carton Width
10
Ship Weight
17
Vendor Ship Method
Small Parcel
Warranty
Limited Lifetime
Weight
17
Assembly Required
Yes
Blade Material
ABS
Blade Size
56
Blade Width
2
CFM Average
3474
CFM High
5308
CFM Low
1639
Color
Nickel, Silver, Gray
Commercial or Residential Use
Both
Control Frequency 110V
304Mhz
Control Frequency 220V
434Mhz
Country of Origin
China
Downrod Diameter
1
Fan Wattage at High Speed
33.13
Hanging Type
Downrod
Height Adjustable
Yes
Included Control
Remote Control, Wall Control
Indoor
Yes
IP Rating
IP21
Marine Rated
No
Material Percentage
50% Cast Aluminum, 50% Heavy Stamped Steel
MIN Height
17
Motor Reversible
Yes
Motor/Housing Finish
Brushed Nickel
Noise Level
Silent
Number of Blades
3
Number of Boxes
1
Number Of Speeds
6
Oscillates
No
Outdoor
Yes
Prop 65 Description
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.
Returnable
Yes
RPM High
153
RPM Low
52
Safety Rating
ETL Approved, CETL Approved
Ship Container
Box
Ship Lead Time
3 Days
Sloped Ceiling Compatible
Yes
Title 20
Yes
Manufactured By
Matthews Fan Company


Other Details:
  • 0.5 AMP
  • 7" Height from floor
  • ABS All weather System protected blades.
  • Compatible with slanted ceilings up to 30 degrees for flexible installation. Optional 60 degrees cathedral canopy mounting system available
  • Constructed of cast aluminum and heavy stamped steel
  • Energy efficient, ultra-quiet, six speed, reversible DC motor with new, reliable technology.
  • Enhance comfort and efficiency throughout different seasons by adjusting the direction of airflow with the reverse function
  • Ideal for great rooms, large basements, or open-concept living areas.
  • IP21
  • One six speed hand-held and one six speed decora style, white wall mounted control. Both controls reverse direction of fan.
  • Oversized: Rooms over 400 sq. ft. 56 inches or larger blade span
  • Silent operation for cooling without noise
  • Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space
  • Suitable for fully exposed outdoor areas such as open decks, pergolas, and gazebos and designed to withstand all weather conditions
